Product Details:
|
| Name: | Fully Automatic 16 Passageway Electronic Tablet Capsule Counting Machine | Technology: | LED Technology |
|---|---|---|---|
| Power: | 500W, 220V/110v,50/60HZ | ApplicationRange: | 00# To 5# Capsule, φ≥7mm Diameter Tablet Or Pill And All Kinds Of Caplet |
| Bottle Neck Diameter (mm): | Min 25 | Bottle Body Diameter (mm): | 40-60 |
| Volume Of Bottle (variable): | 15-300 Ml Or According To Customer | Output Capability(ps/min): | 2-9999 |
| Highlight: | tablet counting device,pill counter machine |
||
Product Description of Counting Machine
This type of full automatic high speed counting machine to count tablets capsules for pharmaceutical can be capable of changing all sizes of bottles.
due to counting machine to count tablets capsules flexible adjustment and convenient operation. All types of medical things can be freely counted by this counting machine to count tablets capsules and can not just for tablets but also other solid pharmacy things bu counter machine to count tablets capsules.
Tablet counting machine to count tablets capsules has all types of the advantages and the functions like the automatic real-time detection. Capsule counter machine to count tablets capsules the faulty alarm and many other things to ensure the quantity and the high accuracy of counting products.
This full automatic high speed counting machine to count tablets capsules for pharmaceutical has the functions of the automatic detection. And the rejection of counter machine to count tablets capsules to detect and reject all types of defected products.
Detailed Parameters of Counting Machine
| Technology | LED technology |
| Power | 500W, 220V/110v,50/60HZ |
| ApplicationRange | 00# to 5# capsule, φ≥7mm diameter tablet or pill and all kinds of caplet |
| Bottle neck diameter (mm) | Min 25 |
| Bottle body diameter (mm) | 40-60 |
| Volume of bottle (variable) | 15-300 ml or according to customer |
| Output Capability(ps/min) | 2-9999 |
| Overall dimensions (mm) | 1560*1530*1700mm |
| Weight(kg) | 480 |
Working Principle of Counting Machine
When working, pour the medicine particles into the top hopper, and adjust the primary, intermediate and final vibrating feeders properly, so that the piled medicine particles in the hopper gradually slide down to the blanking port along the vibrating groove plate into a continuous strip. . Then
the drop detection channel one by one uses the principle of photoelectric effect to input the working signal generated by the infrared dynamic scanning sensor to the FPGA high-speed microprocessor, and realizes the counting function through the cooperation of the circuit and the program.
Trait of Counting Machine
1. Using shake approach, has 16 chute, high speed
2. Accounting is accurate, the error below 1
3. Stable running, low noise
4. Continuous running, do not stop when change the bottle
5. Be suitable for different shape tablet, capsule, pill
6. Two chutes for feeding bottles to prevent stop
7. Intelligent design, self-checking, trouble hint, alarm, emergent stop and so on, easy and safe.
8. Airproof and dustproof, easy to disassemble, according with GMP

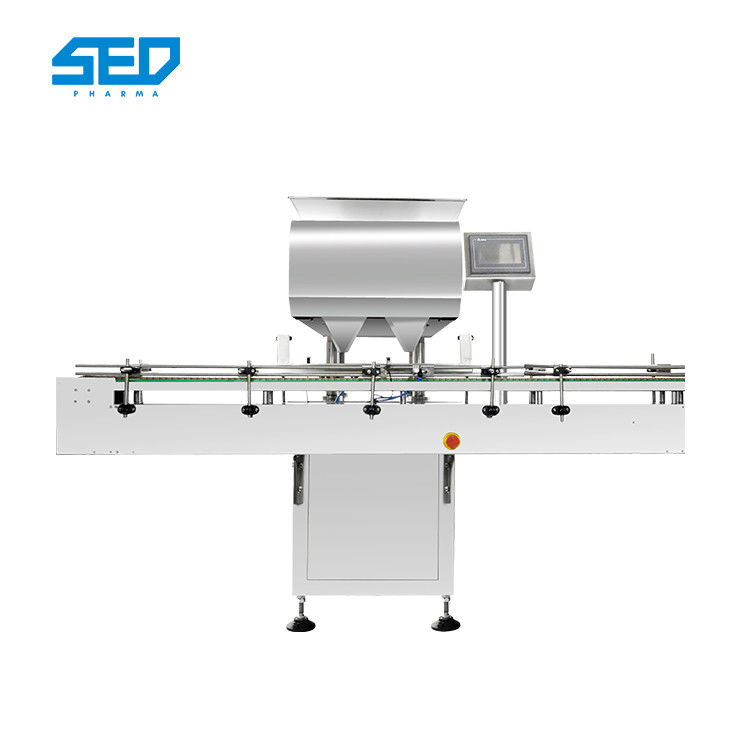

Photo show of Counting Machine
Application of Counting Machine
automatic counting machine is a automatic counting and bottle filling machine for capsules, tablets, soft
gelcapsules, and pills. It is mainly used in pharmaceutical, herbal, food and chemical industries.
