Product Details:
|
| Name: | Durable Semi Automatic Electronic Capsule Counter | Applicable Bottle Type: | Round, Square Plastic Bottle |
|---|---|---|---|
| Filling In As:: | 00 ~ 5 # Capsule, Soft Capsule, | Production Capacity:: | 10-25 Bottles/minute |
| Setting Range Of Bottle Quantity: | 2-9999 | Power Supply And Power:: | 220V 50/60Hz |
| Accuracy:: | > 99.5% | ||
| Highlight: | electronic pill counter,pill counter machine |
||
Product Description of Capsule Counting Machine
The counting machine is an intelligent high-precision automatic capsule counting machine, and the new patented capsule counting device can automatically realize any number (odd, even, prime) precise number granulation work.
The machine has novel structure, small size, stable operation and low noise. It is an ideal automatic granule bottling equipment used by small and medium-sized pharmaceutical enterprises, health care products factories and hospital preparation rooms.
Detailed Parameters of Capsule Counting Machine
| Model name | SED-6BS |
| Application |
other solid object under machine range |
| Production capacity: | 10-25 bottles/minute |
| Setting range of bottle quantity: | 2-9999pcs/bottle (adjustable) |
|
Bottle Size: |
Diameter: 30-75mm Height:40-180mm |
|
Counting Size |
Thickness: 3-10mm Diameter: 3-15mm Length: 3-30mm |
|
Hopper volume |
About 15L |
| Overall dimension: | 1090*280*840mm |
| Weight: | 100kg |
Trait of Capsule Counting Machine
1.Vertical track compensation type counting (patented technology), the particle precision is almost 100%, which avoids the disadvantages of traditional vibration or rotary type particle precision error.
2.The main engine adopts frequency conversion speed regulation to achieve soft start speed, sensitive, reliable and stable, and can withstand large starting torque.

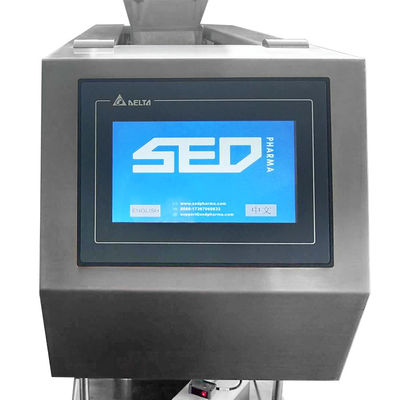

3.Control adopts touch screen man-machine interface PLC programmable controller technology to quickly set various parameters.
4.All parts in contact with pharmaceuticals are made of 304 stainless steel, in line with GMP standards.

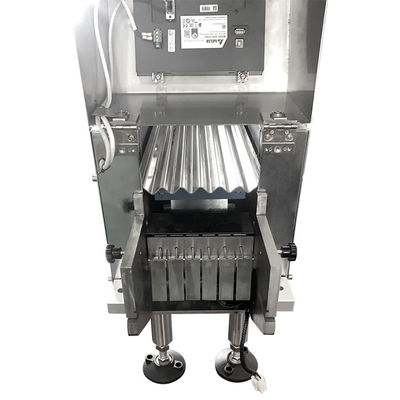

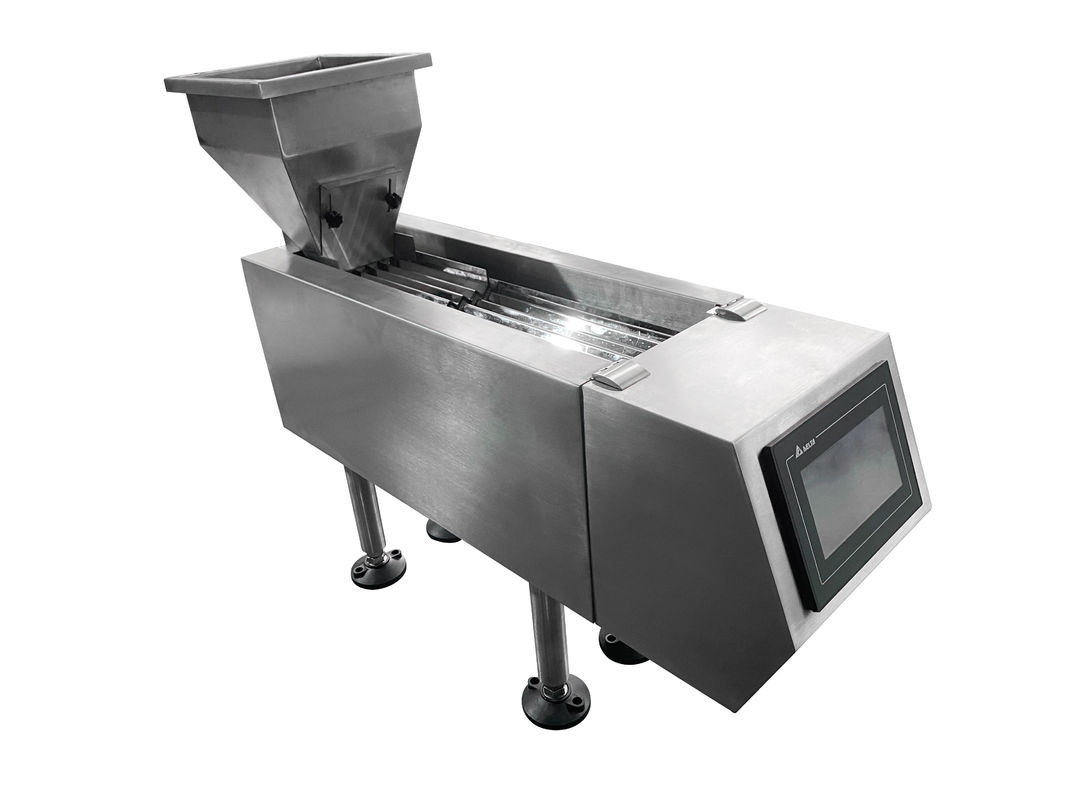

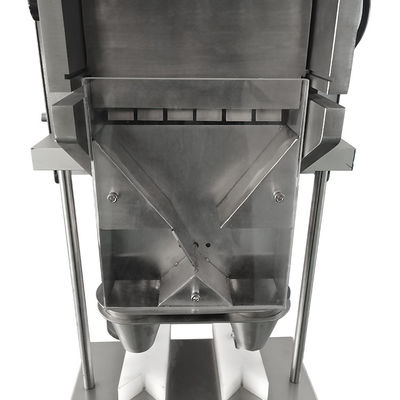

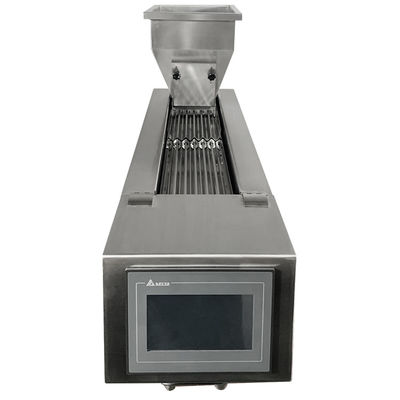

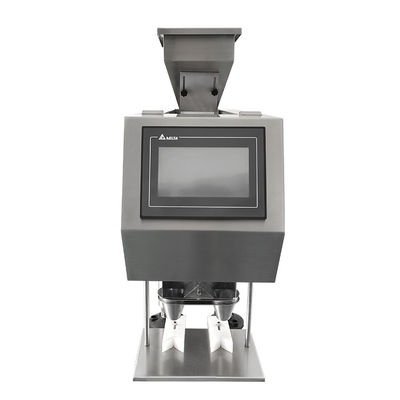

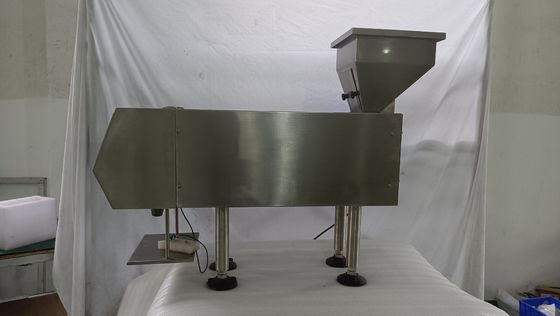

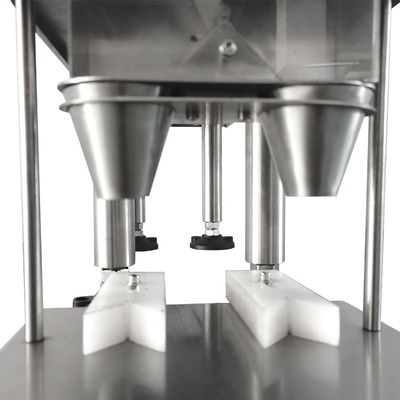

Product Show of Capsule Counting Machine
Application of Capsule Counting Machine
