Product Details:
|
| Name: | Long Life Full Automatic Capsule Counter Machine 32 Channel Number Of Accurate | Technology: | LED Technology |
|---|---|---|---|
| Power: | 500W, 220V/110v,50/60HZ | Application Range: | 00# To 5# Capsule, φ≥7mm Diameter Tablet Or Pill And All Kinds Of Caplet |
| Bottle Neck Diameter (mm): | Min 25 | Bottle Body Diameter (mm): | 35-90 |
| Volume Of Bottle (variable): | 15-300 Ml Or According To Customer | Output Capability(ps/min): | 2-9999 |
| Overall Dimensions (mm): | 2160*1530*1700mm | Weight(kg): | 710 |
| Material: | Stainless Steel | Key Word: | Capsule Counting Machine Tablet Bottling Machine |
| Highlight: | electronic pill counter,pill counter machine |
||
Long Life Full Automatic Capsule Counter Machine 32 Channel Number Of Accurate
Product Description of Capsule Counting Machine
High speed electron counting & filling machine is suitable for different shape and specification tablet, capsule, pill and do not need to change mould. It is convenience and accurate.
1. Using shake approach, has 16 chute, high speed
2. Accounting is accurate, the error below 1‰
3. Stable running, low noise
4. Continuous running, do not stop when change the bottle
5. Be suitable for different shape tablet, capsule, pill
6. Two chutes for feeding bottles to prevent stop
7. Intelligent design, self-checking, trouble hint, alarm, emergent stop and so on, easy and safe.
8. Airproof and dustproof, easy to disassemble, according with GMP
Technical Parameters of Capsule Counting Machine
| IModel | SED-32QS |
| Technology | LED technology |
| Power | 500W, 220V/110v,50/60HZ |
| Application Range | 00# to 5# capsule, φ≥7mm diameter tablet or pill and all kinds of caplet |
| Bottle neck diameter (mm) | Min 25 |
| Bottle body diameter (mm) | 35-90 |
| Volume of bottle (variable) | 15-300 ml or according to customer |
| Output Capability(ps/min) | 2-9999 |
| Weight(kg) | 710 |
Features of Capsule Counting Machine:
1.The tablet counting machine has good stability.Using the electronic counting technology of high dust resistance, the pill capsule tablet counting machine can still operate normally in high dust environment.
2.Counting machine owns strong compatibility, wide scope of application.All kinds of tablets, capsules (transparent or opaque hard capsules, soft capsules, pills, etc.) can be counted and canned.
3.Vertical orbit compensation count (patented technology), the number of grain accuracy can reach 99.9%, to avoid the traditional vibration or rotation of a large number of errors in the precision of the error.
4.Vertical orbit compensation count (patented technology),to achieve the number of bottling capsules quickly set all the figures in the same type of capsule,not need to replace the mold is very fast and convenient.
5. Host uses frequency conversion speed regulation can be soft start speed regulation sensitive, reliable and stable, and can bear large start-up torque.

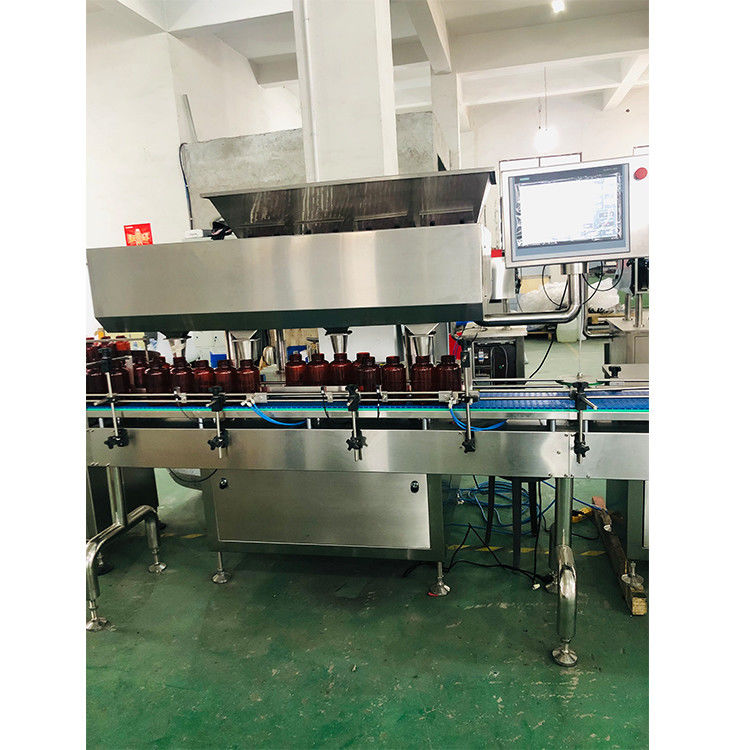

Machine Detailed Show of Capsule Counting Machine
Application of Capsule Counting Machine
This machine has been designed and developed to count & fill different shapes or size of products accurately like soft gel capsules, hard capsules, tablets, sugar coating, and film coating tablets, pills, herb medicine or similar products into containers or vials.
