Product Details:
|
| Name: | Semi Automatic 6 Channels Capsule Counting Machine Gummy Counter | Model: | SED-8-4S |
|---|---|---|---|
| Hopper Volume: | 40L | Filling Quantity: | 1-9999 Pcs/bottle(adjustable) |
| Counting Speed: | 30-50 Bottles Per Minute | Bottle Diamater: | 30-75mm |
| Dimensions: | 600*500*700mm | Key Word: | Capsule Counting Machine Tablet Bottling Machine |
| Highlight: | tablet counting device,pill counter machine |
||
Product Introduction of Counting Machine
Small DPT semi-automatic capsule bottle filling machine is used to count capsules, tablets, grains and other medicines or food. Mainly used in hospitals, food and other fields. The machine is made of stainless steel, small in size, light in weight, accurate in counting and simple in operation.
Contact surfaces of reactive materials are also made of stainless steel. Ideal for counting bottles, bags or canned products in a variety of related industries.
Product parameters of Counting Machine
| Item | SED-6BS |
|
Application |
0-5# capsules, soft gels, ф3.5-22 mm normal tablets, ф3.5-22 mm pills special shape tablets, coating tablets,and some other solid granules |
|
Capacity |
20-90 BPM |
|
9000-40500 Bottles / Shift |
|
|
Capacity is subject to the type and size of the bottles and raw materials, as well as the quantity filled per bottle. *BPM=Bottles per minute |
|
|
Working Range |
Adjustable from 2-9999 per bottle |
|
Power supply and consumption |
220V/50HZ 1.5kw |
|
Size |
1800*1600*1560mm |
|
Filling error |
≤ 2‰ bottles |
|
Material |
SS316+SS304 |
|
Control System |
MCU |
|
Pressed Air Supply |
0.6 Mpa |
|
Weight |
300kg |

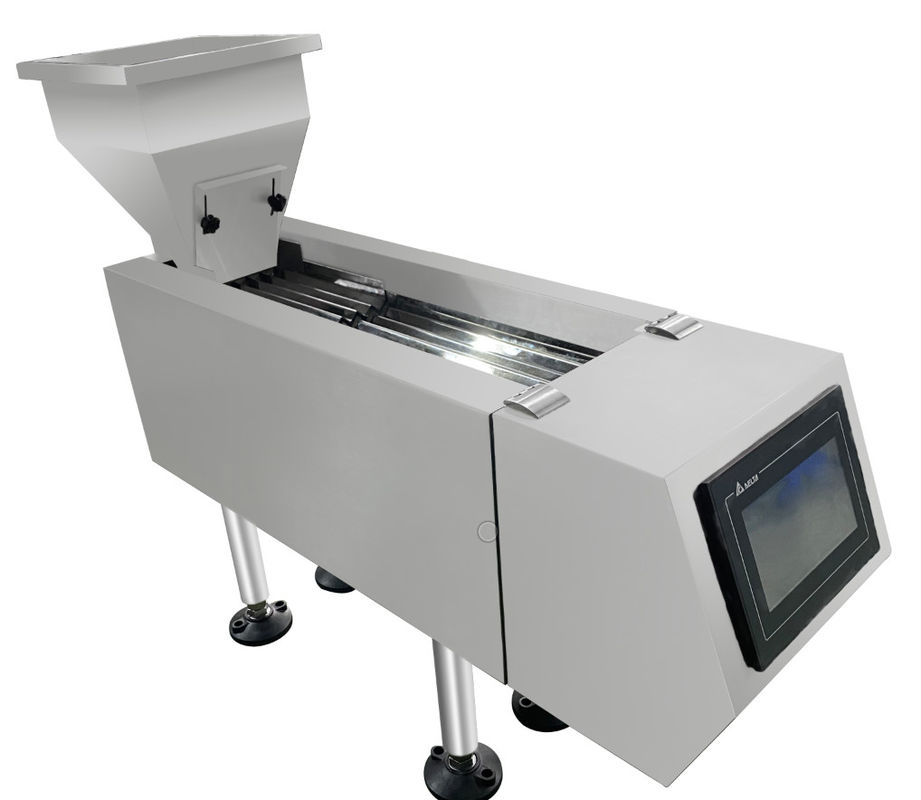

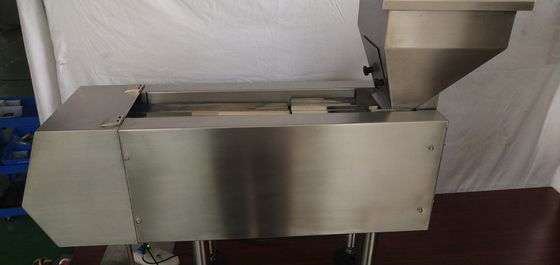

Product Show of Counting Machine
Application of Counting Machine
