Automatic Tablet Counting Machine With Touch Screen

Automatic Tablet Counting Machine With Touch Screen

Product Introduction of Counting Machine

This Counting Machine can be applied for counting capsules, soft gels, tablets, chewing gum, round pills, and other solid materials without the need for tooling when changing objects. Its part in contact with material is made of 304 stainless steel, which is full GMP-compliant design.


Product parameters of Counting Machine​

Working Principle of Counting Machine​

After the hopper is filled with the product to be counted, bottle or other container is placed at the bottling position manually. Then the product falls into the counting device in an orderly manner through the vibratory plates, and is counted by the photoelectric counting sensor and then loaded into the bottle or other container. Filled bottles are taken away manually, and new empty bottles are put on for filling.

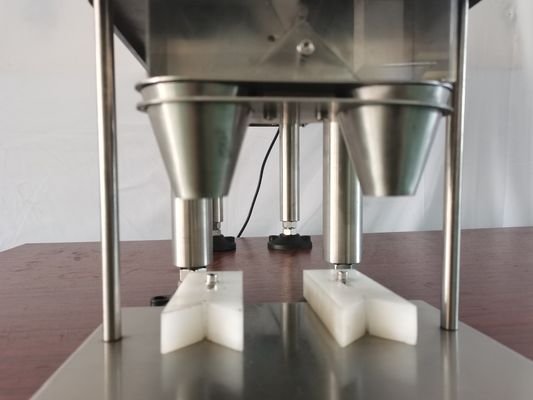

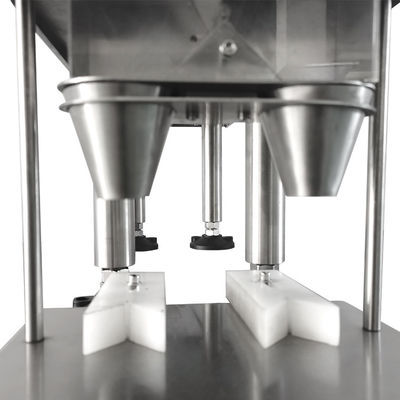

This model SED-6BS2 features dual discharge heads. Two discharge heads start discharging alternately, that is, the machine counts the corresponding number of product into bottle through the left discharge head, then the right discharge head. Bottles need to be replaced manually.

Feature of Counting Machine

• Strong compatibility: It can counts tablets (including special-shaped tablets), capsules, soft capsules, pills into bottles.
• Vibration discharging: It vibrates and discharges the product evenly and smoothly, without causing damage.
• Anti-dust system: It adopts our company's anti-dust photoelectric sensor technology, and can work stably even under high dust conditions.
• Dual discharge heads: Two discharge heads discharge alternately, which greatly increased productivity.

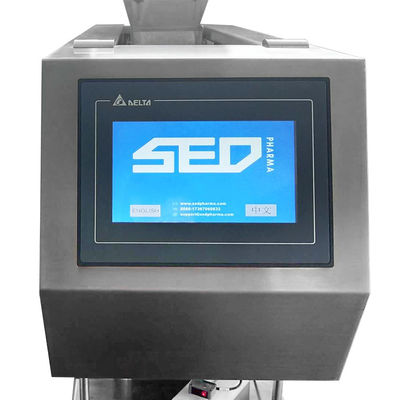

• The machine comes with touch screen for easy operation.
• There is no need for tooling when user changes the counting object.

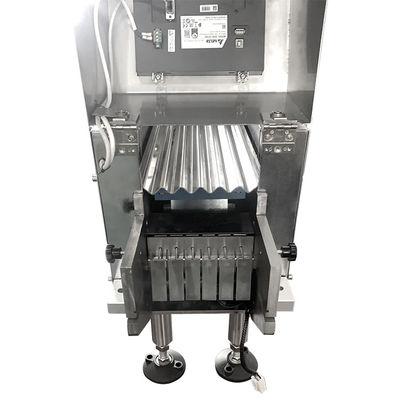

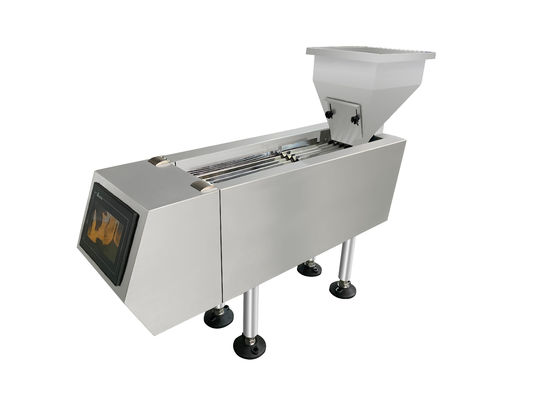

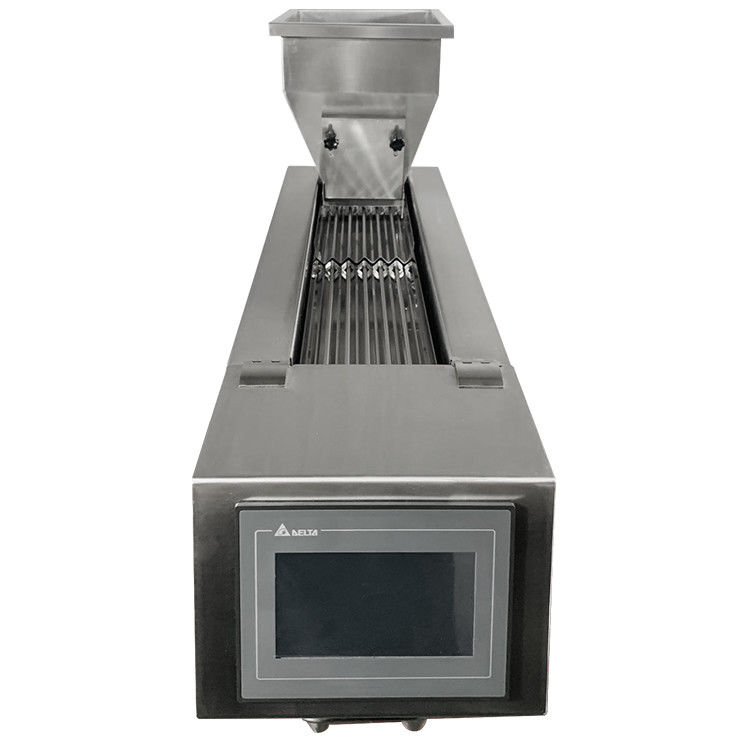

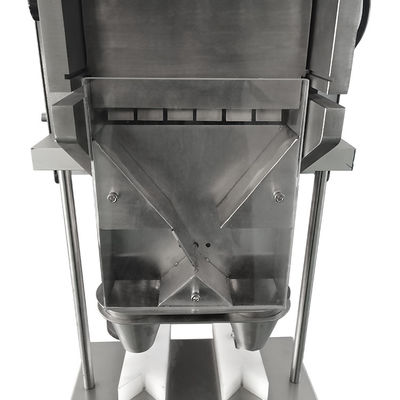

Product Show of Counting Machine​

Application of Counting Machine
