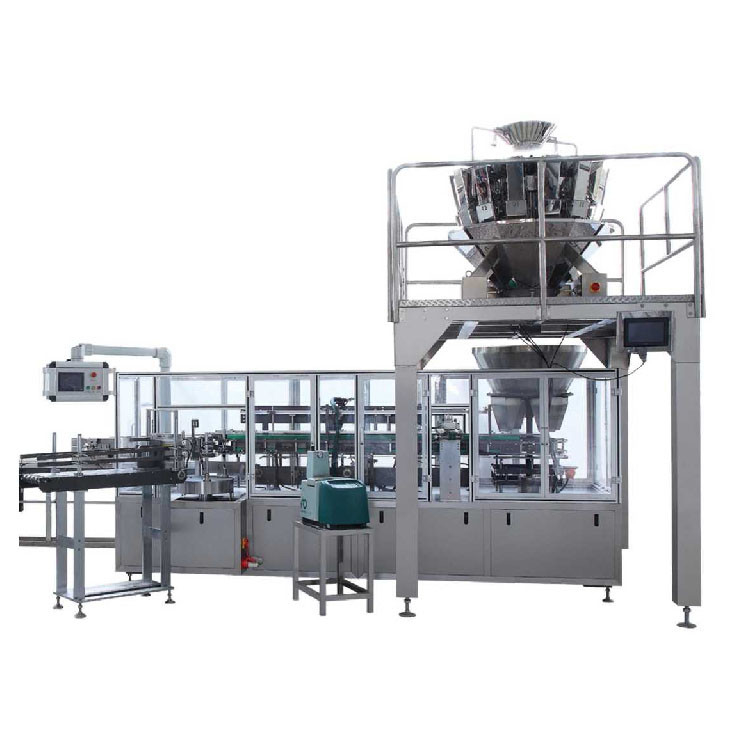

Product Details:
|
| Name: | Fully Automatic Cartoning Machine Vertical Carton Packing Machine | Weight: | 3000kg |
|---|---|---|---|
| Driven Type: | Electric | Automatic Grade: | Automatic |
| Type: | Automatic Carton Box Making Machine For Fruits | Application: | Medical,Commodity,Food,Chemical,Machinery & Hardware |
| Condition: | New | Packaging Type: | Cartons,Bottles,Bags,Cans,Case |
| Material: | Stainless Steel | Key Word: | Automatic Cartoning Machine |
| Highlight: | auto cartoner machine,vertical cartoning machine |
||
Product Parameters of Cartoner Machine
| Main technical parameters | ||
| Encasing speed | 20-40boxes/min | |
| Box | Quality requirement | 300-450g/m2 |
| Compressed air | Working pressure | 0.5-0.8Mpa |
| Air consumption | 120-160L/min | |
| Power | 220V/50Hz | |
| Motor power | 1.5kw | |
| Machine dimension(L×W×H) | 4000mm×2000mm×2300mm | |
| Machine weight | 3000kg | |
Features of Cartoner Machine
1. International famous brand of electric components such for PLC touch screen, frequency inverters, etc.
2. Adopt human-machine operation system.
3. Automatically displaying device for trouble, speed and finished products counting
4. Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
5. No products not suction leaflet, no leaflet not suction carton.
6. Automatic detection and rejection device for lacking blister goods and leaflets.
7. Protecting automatically for overloading.
8. Stable performance, operation is easy.
Application of Cartoner Machine
