Product Details:
|
| Name: | Semi-Automatic Capsule Filler With Button Control | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
|---|---|---|---|
| Condition: | New | Dimension(l*w*h): | 1450*670*1650mm |
| Type: | Semi Automatic Filling Machine | Application: | Medical,Food,Chemical,Beverage,Commodity |
| Material: | Stainless Steel | Key Word: | Powder Capsule Filling Machine,Automatic Capsule Filling Machine |
| Highlight: | capsule filling device,capsule filling equipment |
||

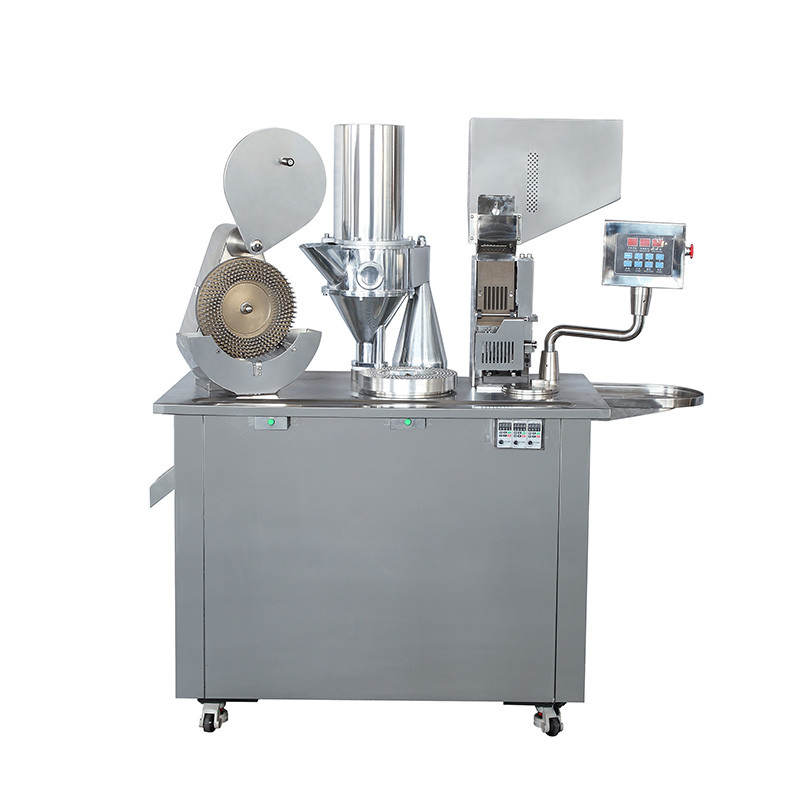

Product Description of Capsule filling machine
The semi-automatic capsule filling machine is a kind of equipment suitable for medicine, industry, chemical industry, food and other industries, with novel structure and beautiful shape. This machine uses electropneumatic joint control, and it is equipped with touch switch, programming control, frequency conversion and speed regulating device. It can respectively complete various steps including putting the capsule in place, separating, filling, locking and so on. Instead of manual filling, this machine can reduce the labor intensity, and improve production efficiency. It has accurate filling dose and meets the requirements of medicine hygiene.
This machine is composed of the mechanism of capsule turning and separating, the filling mechanism, the locking mechanism, the frequency converter and speed regulating mechanism, the pneumatic control and electrical control system, the protection device and other parts as well as the accessories of the vacuum pump and the air pump.
The domestic or imported capsules all can be applied, and the qualified rate of the finished product can reach more than 98%.
Product Parameters of Capsule filling machine
| Model | SED-BJ-I-A |
| Capsule Size | 000#-5# |
| Capacity | 10000-22500 capsules/h |
| Power Supply | 220V/380V 1P/3P 2.1KW |
| Vacuum Pump | 40m3/h |
| Capacity of Air Compressor | 0.03m3/min 0.7Mpa |
| Overall Dimension | 1450*670*1650mm |
| Weight | 330kg |
Feature of Capsule filling machine
1. Much easier and more convenient to operate the new semi-auto capsule filling machine with a PLC.
2. Adopt SS304 instead of copper to make the capsule dispensing part. This change enhances the precision of capsule loading and reduces fnction. Not only does it improve the producing efficiency, but also it extends the life of the machine.
3. The capsule locking parts on the new machine is horizontal, and it adopts automatic pneumatic principle.
The main benefits that you will experience by using a semi-automatic filling machine include:
1. You can use it to fill different types of fillers including powders, pellets, or granules.
Application of Capsule filling machine
The automatic capsule filling machine is mainly used for filling powder or pellet capsule medicines in medicine, hospital preparation room, health care products and other industries.
