Product Details:
|
| Name: | Stainless Steel Automatic Packing Machine Rotary Type Chocolate Bean Packaging Machine | Pouch Material: | Laminated Film |
|---|---|---|---|
| Pouch Pattern: | Stand-up Pouch | Pouch Width: | 100-210mm |
| Pouch Length: | 100-350mm | Weighing Accuracy: | ±0.1-2g |
| Speed: | 10-45pouches/min | Voltage: | 380V 50HZ/60HZ Three Phase |
| Material: | Stainless Steel | Key Word: | Automatic Packing Machine |
| Highlight: | auto packaging machine,automatic bagging machine |
||
Product Overview of Packaging Machine
Suitable for garin material, such as Melon seed, nuts, candy, Raisins, Chinese wolfberry, Red dates, Potato chips, cookies, crystal monosodium glutamate and others solid material automatic packing.
Operation Procedure
1. Bag-giving → 2. Coding → 3. Opening →4.Filling A→ 5. Filling B → 6. Heat sealing A→7.Heat sealing B→8.Forming and output
Product Parameters of Packaging Machine
| Model Name | SED-200KGD-H |
| Packing speed | 16-60 bags/min |
| Packing bag size |
W:80-200mm L: 100-360mm |
| Weighing range | 100-500g |
| Air consumption | ≤0.6m³/min |
| Supply power | 380V 50HZ 3P |
| Total power | 6 kw |
| Dimensions (L*W*H) | 4280 * 2210 * 3655mm |
| Gross Weight | 1800kg+200kg+300kg |
| Precision | ≤ ±1% |
Feature of Packaging Machine
Using a computerized combination weigher and a packaging machine combined quantitative automatic packaging system, accurate measurement, fast packaging speed, stable operation, low error and low noise. The material meets the sanitary requirements of food packaging, the sealing effect is good, and the operation is simple. This hoist is suitable for vertical hoisting of granular materials in grain, food, feed and chemical sectors. Widely used in food packaging and other industries, applicable to a wide range of industries

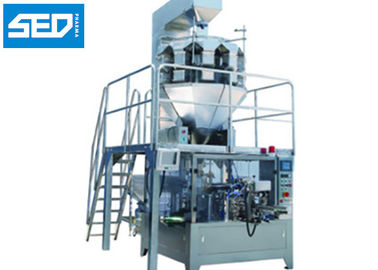

Product Show of Packaging Machine
Application of Packaging Machine
Various powders, such as milk powder, coffee, spices, additives, washing powder, seasonings, powdered sugar, coffee powder, wheat flour, washing powder, coconut flour, etc.
