Product Details:
|
| Name: | Full - Automatic Bottle Labeler Machine Stably And Efficiently For Flat Bottle | Product Name: | Labelling Machine For Flat Bottle |
|---|---|---|---|
| Apply The Label: | Self-adhesive Label | Label Speed: | 0-80pcs/min |
| Labeling Accuracy: | ±1mm | Total Weight: | 178kg |
| Material: | Stainless Steel | Key Word: | Bottle Labeling Machine |
| Highlight: | automatic labeling equipment,sticker labeler machine |
||
Full - Automatic Bottle Labeler Machine Stably And Efficiently For Flat Bottle
Product Parameters of Auto Label Machine
| product name | labelling machine for flat bottle |
| applicable product | Cylindrical surface |
| Apply the label | self-adhesive label |
| Applicable product diameter | 30-115mm |
| Applicable label width | 10-150mm |
| Label speed | 0-80pcs/min |
| Labeling accuracy | ±1mm |
| Total Weight | 175kg |
| Overall Dimension | 2000X1200X1500mm |
| power source | 220V/VA |
| rate of work | 1450W |
The Scope of Application:
For all types of round plastic bottles, such as salad oil bottles, wine bottles, sauce pot, etc. It is amodern mechanical and electrical integration product.
Labeling machine is applied to roll label paper sticker, labeling by rolling. A compelete process can be automatic deliver bottles, label, collect bottle. It can be connected with printer to make lable print.
The machine uses computer fiber control, synchronous tracking. The standard is controlled by the mutual inductance stepper motor to ensure that the standard speed and roll speed is synchronized in work.
Equipment function characteristics of Auto Label Machine
1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate.
2) Operation system: SIEMENS 7 inch touch screen, directly visual interface easy operation, also rich with help function and fault display function.
3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for worker.
4) Send label system: German Avery labeling engine control system, stable with high speed.
5) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.
7) Low voltage circuit all use the German Schneider brand.

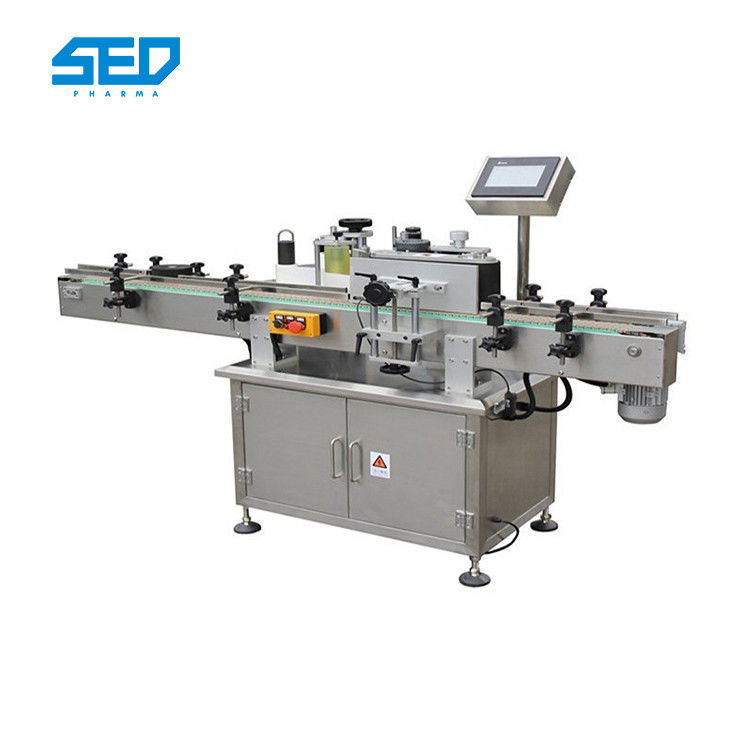

Show of Auto Label Machine
Application of Auto Label Machine
